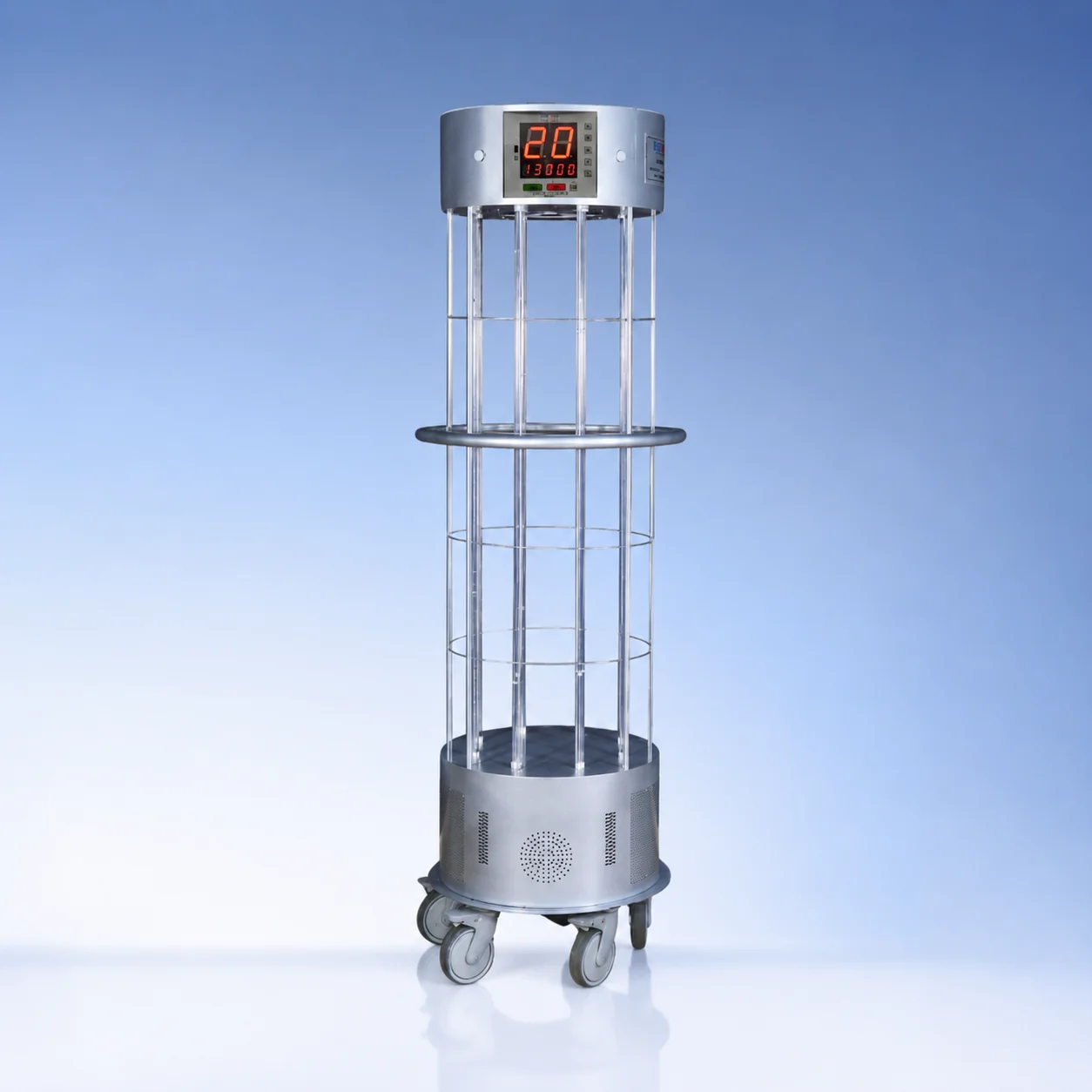

UVMED-1 UV-C Disinfection & Sterilization Tower
Advanced Germicidal Ultraviolet (UV-C) Pathogen Eradication & Rapid Room Sterilization Platform
The UVMED-1 UV-C Disinfection Tower delivers automated, chemical-free whole-room sterilization for modern operating theaters, intensive care units, and clinical environments. Utilizing high-output 253.7nm germicidal ultraviolet light, the system destroys microbial DNA and RNA, achieving up to a 99.99% reduction in hazardous bacteria, viruses, moulds, and spore-forming pathogens.
Product Overview
Independent scientific investigations conducted by the Centers for Disease Control and Prevention (CDC), Johns Hopkins School of Medicine, and Duke University have repeatedly validated germicidal UV-C irradiation as an indispensable technology for significantly curbing Healthcare-Associated Infections (HAIs).
Unlike conventional aerosol or chemical wipe regimens that risk leaving persistent residues, toxic fumes, or corrosive mists, the UVMED-1 provides a completely dry, ecologically safe, and non-corrosive sterilization process. Its multi-lamp high-intensity quartz array ensures comprehensive terminal disinfection of both direct-line-of-sight and shadowed ambient room surfaces, supporting prompt clinical room turnover between surgical procedures.
Key Features of UVMED-1
- Tri-mode control interface: On-device touch screen, wireless RF remote, and Android app
- Rapid terminal disinfection cycles completed in 15 to 20 minutes
- 360-degree intelligent PIR motion sensors with automatic shut-off and Smart Pause
- 100% dry, chemical-free sterilization leaving zero odors, residues, or mist
- 8 high-output UV-C quartz emitters delivering up to 99.99% germicidal destruction
- True plug-and-play architecture with heavy-duty 5-inch lockable caster mobility
- Automated system events datalogging for regulatory compliance and audit trails
- Exceptionally low operational, consumable, and routine maintenance costs
Engineered System Components
Every component of the UVMED-1 is precision-engineered for hospital-grade resilience, intuitive workflow, and uncompromised operator safety.

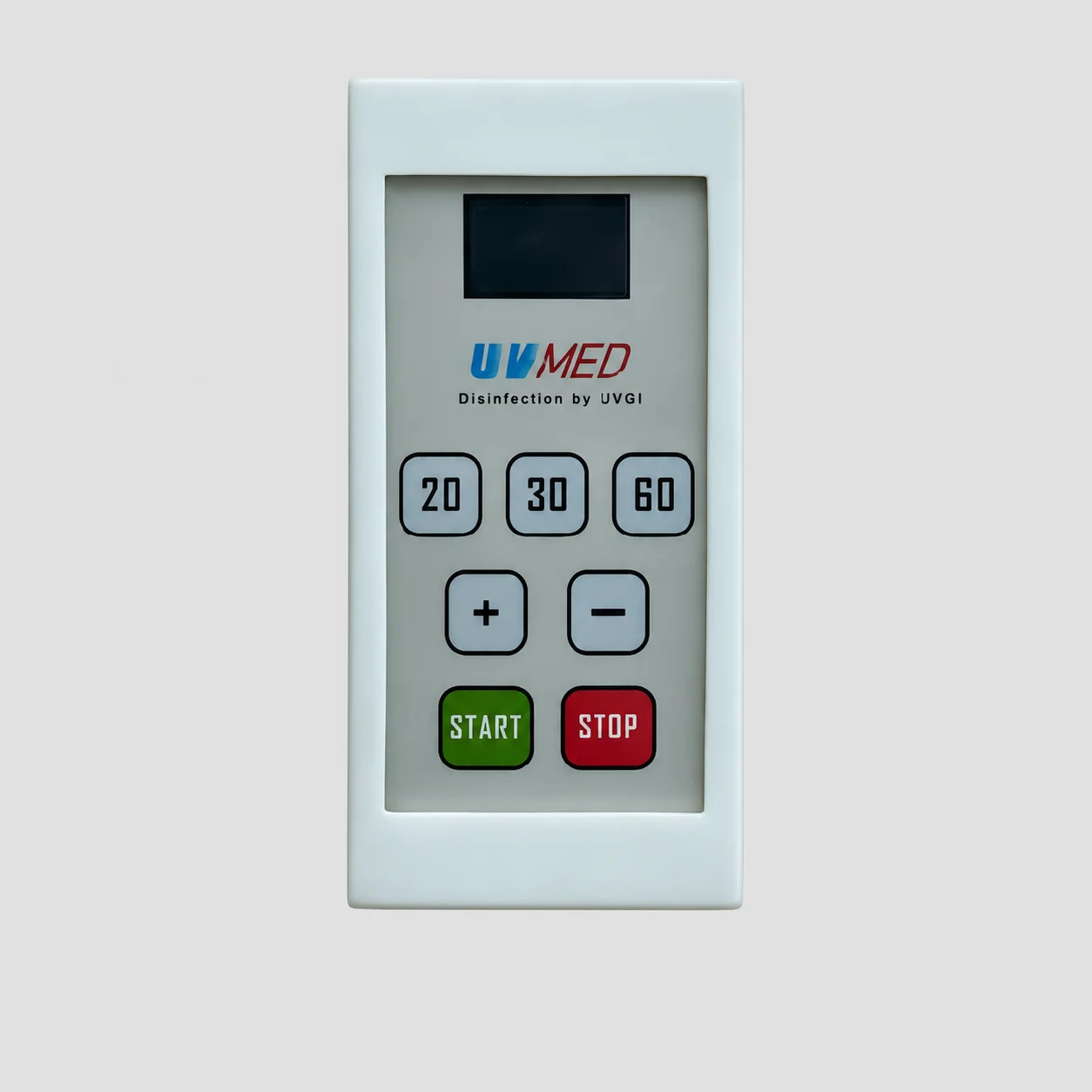

Multifunctional Remote Control
Allows safe cycle initiation, pause, and timing control from outside the sealed disinfection zone.

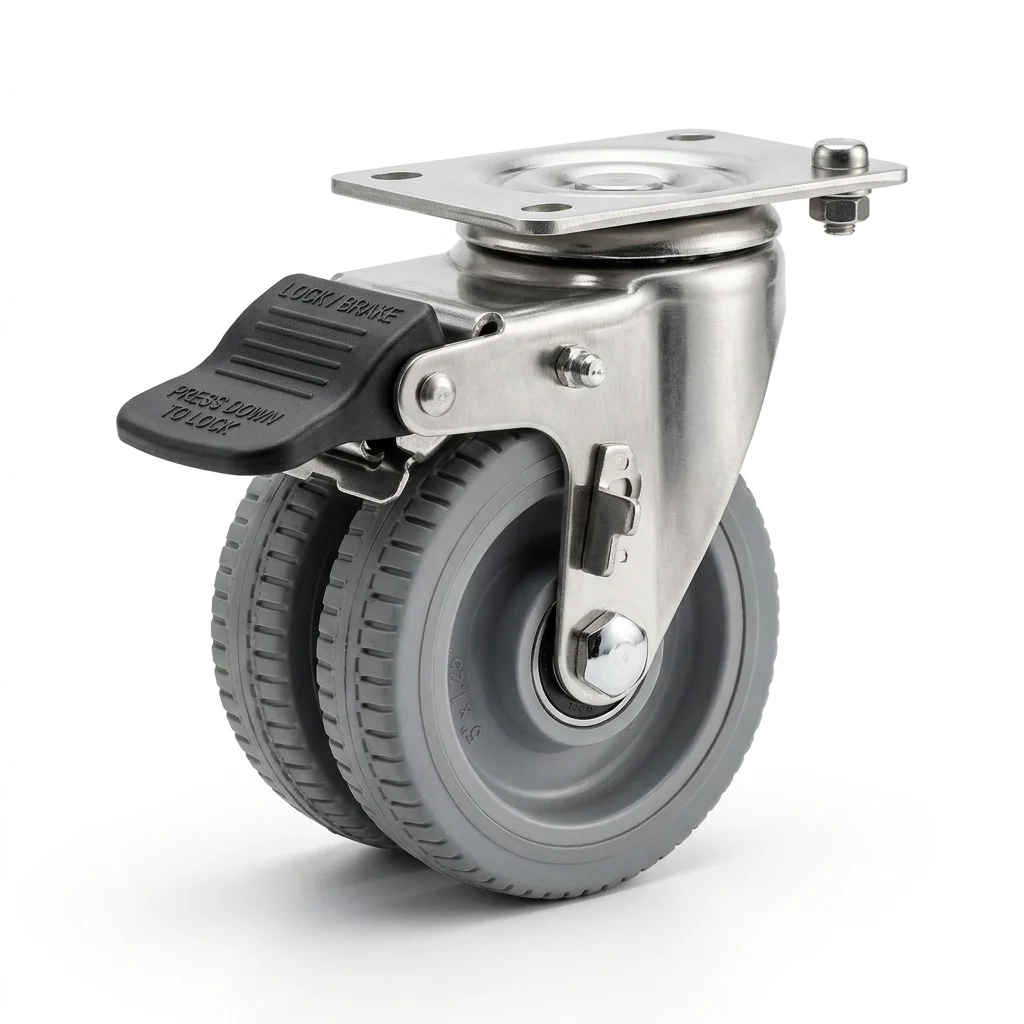

5-Inch Lockable Casters
Smooth, effortless transit across hospital thresholds with rigid dual-locking stability during cycles.

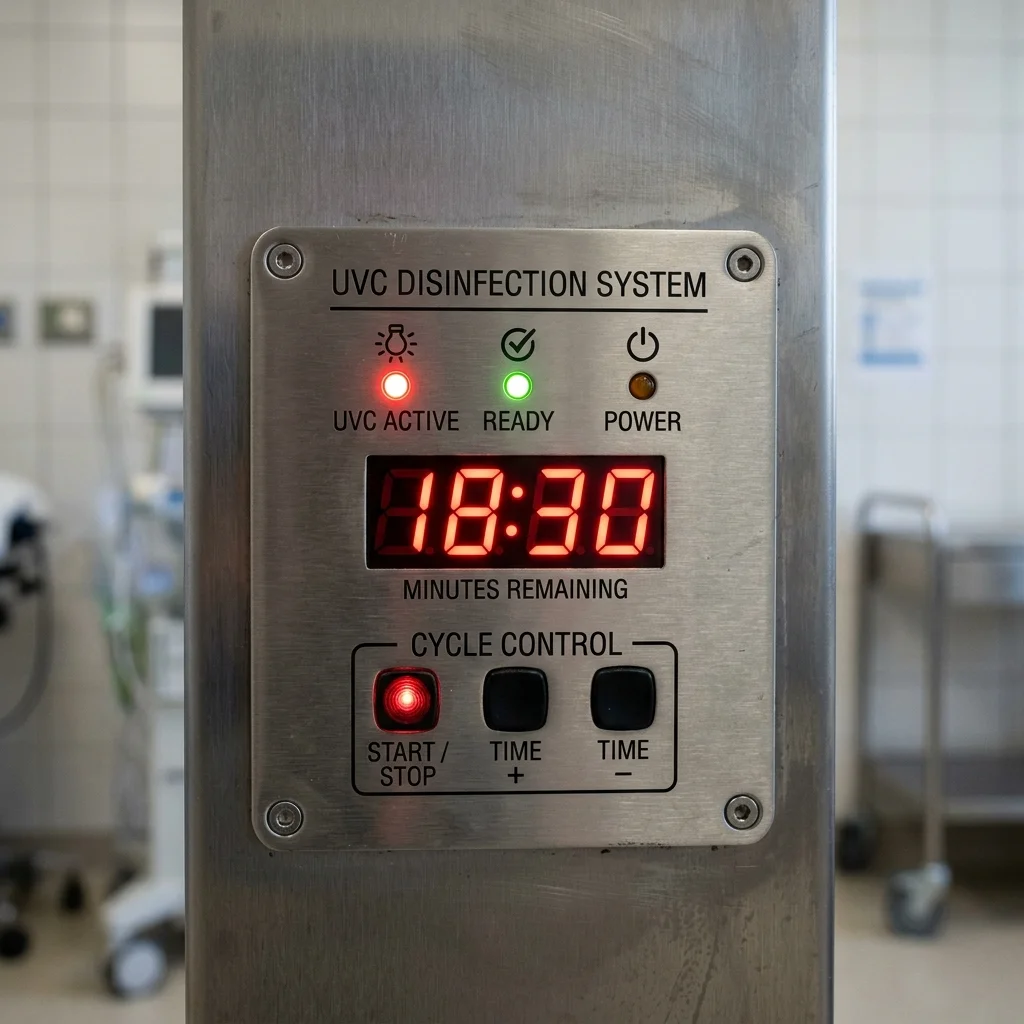

High-Resolution LCD Screen
Clear, real-time cycle countdown, operating parameter readouts, and automated diagnostic alerts.

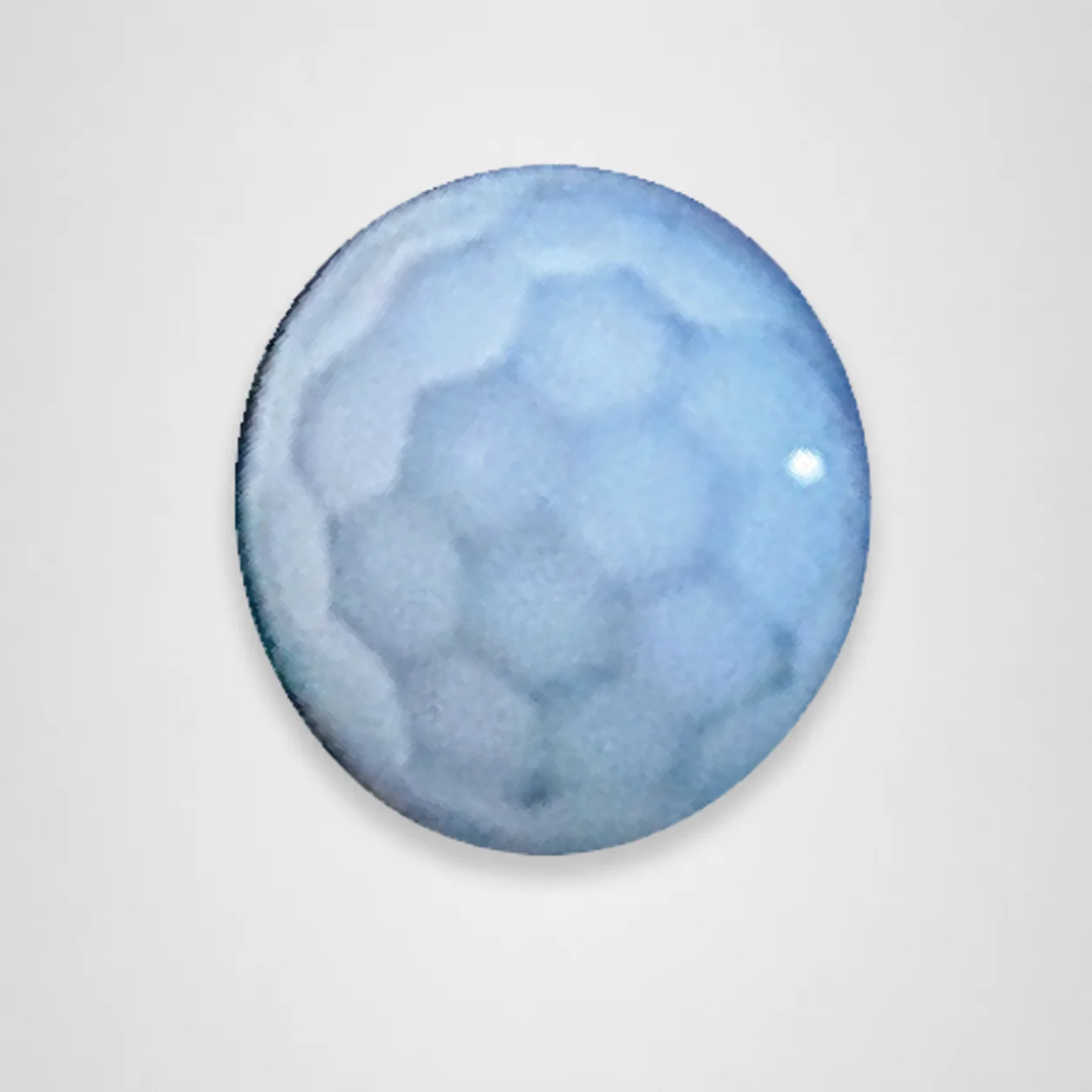

360° PIR Motion Sensors
Continuous surround motion detection that immediately cuts off lamp power if movement is detected.
The Science of Germicidal UV-C (253.7 nm)
Photolytic Microbial Inactivation

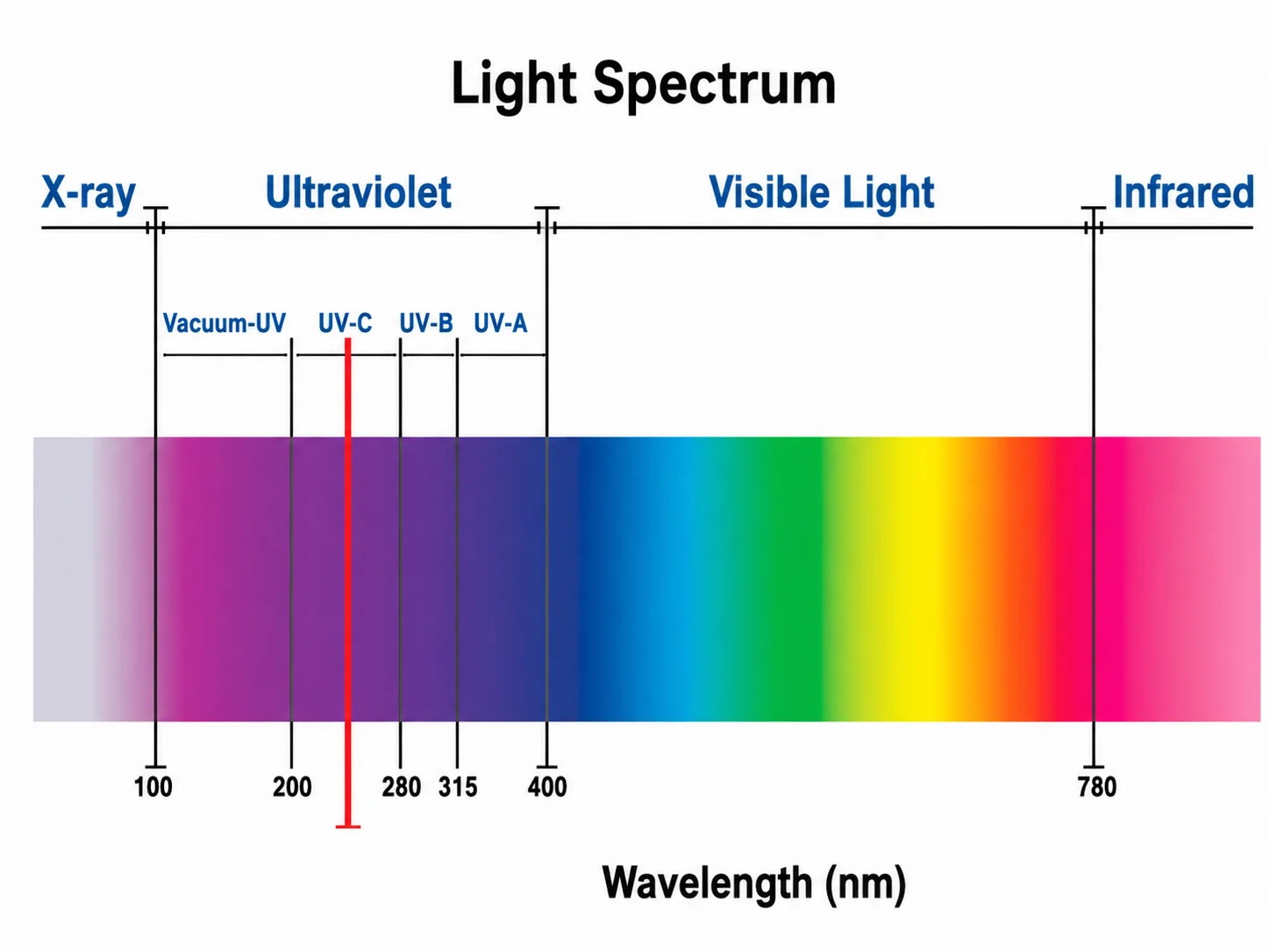

Ultraviolet radiation spans four distinct categories: UV-A (315–400 nm), UV-B (280–315 nm), UV-C (200–280 nm), and Vacuum UV (100–200 nm).
Shortwave Germicidal UV-C at 253.7 nm represents the exact electromagnetic frequency where cellular nucleic acids (DNA and RNA) exhibit maximum absorption. When exposed to this wavelength, adjacent thymine bases form covalent dimers, disrupting the cellular replication cycle and rendering microbes non-pathogenic.
Click to Enlarge Light Spectrum Chart
Broad-Spectrum Pathogen Inactivation
The UVMED-1 is engineered to deliver validated biocidal dosages across all four major classes of clinical microorganisms:
Gram+ & Gram-
Methicillin-resistant Staphylococcus aureus (MRSA), E. coli, M. tuberculosis, L. monocytogenes, A. baumannii.
Enveloped & Non-Enveloped
SARS-CoV-2 (COVID-19), Influenza strains, Norovirus, Coronaviruses, and airborne respiratory viral agents.
Bacterial & Fungal Spores
Clostridioides difficile (C. diff spores), Aspergillus niger, and stubborn hospital surface spore formations.
Pathogenic Yeasts
Candida auris, Candida albicans, and emerging multi-drug resistant clinical fungal strains.
Technical Specifications
| Parameter | Specification & Details |
|---|---|
| Product Model | UVMED-1 UV-C Disinfection & Sterilization Tower |
| Ultraviolet Band | UV-C (Short-wave Germicidal Ultraviolet) |
| Peak Emission Wavelength | 253.7 nm (Optimal nucleic acid absorption band) |
| Lamp Array Configuration | 8x High-Output Quartz Germicidal UV-C Lamps |
| Antimicrobial Efficacy | Up to 99.99% (Log-4 Pathogen Reduction) |
| Standard Disinfection Cycle | 15 – 20 Minutes (Room volume & geometry dependent) |
| Maximum Treatment Coverage | Up to 1,000 sq. ft. per deployment cycle |
| Safety & Interlock Architecture | 360° Surround PIR Motion Sensors with Smart Pause & Auto-Shutoff |
| Operator Control Interfaces | Integrated LCD Panel, Multi-Channel Wireless RF Remote, Android App |
| Chassis & Mobility | Reinforced Heavy-Duty Chassis on 4x 5-inch Lockable Swivel Casters |
| Sterilization Medium | 100% Dry / Chemical-Free (Zero ozone, zero residue, no toxic aerosol) |
| Audit & Compliance Logging | Automated system event logging & operation cycle record keeping |
UV-C Scientific Principles & Safety Guidelines
- Historical Legacy: Germicidal ultraviolet radiation has been trusted in medical sterilization since the late 1800s.
- Wavelength Peak: Germicidal effectiveness reaches its maximum curve between 250 nm and 265 nm.
- Dermal Protection: UV-C cannot penetrate the outer stratum corneum layer of human skin.
- Optical Attenuation: Ordinary window glass, clear plastics, and standard clothing absorb and block UV-C radiation.
- Non-Resistance: Pathogens cannot mutate or develop biological resistance to direct photolytic DNA disruption.
- Chemical Synergy: Functions with equal effectiveness as an independent terminal sterilizer or complementary protocol.
Clinical & Institutional Applications
Surgical Suites & ICUs
Operation theaters, surgical recovery rooms, isolation units, burns wards, and intensive care suites.
Diagnostic & Procedure Rooms
Radiology suites, endoscopy suites, dental operatories, OPD clinics, and diagnostic centers.
Pharmaceutical Manufacturing
Sterile formulation cleanrooms, compounding suites, and pharmaceutical packaging zones.
Research & Bio-Safety Labs
R&D laboratories, tissue culture units, biosafety cabinets, and containment facilities.
Hospitality & Corporate Spaces
High-turnover guest suites, corporate healthcare facilities, and controlled institutional environments.
Bio-Burden Control
Any enclosed healthcare or institutional setting requiring rapid, certified reduction in ambient bio-burden.
