Complete Turnkey Modular Operation Theatre Suite by Cygnus Tech Lab

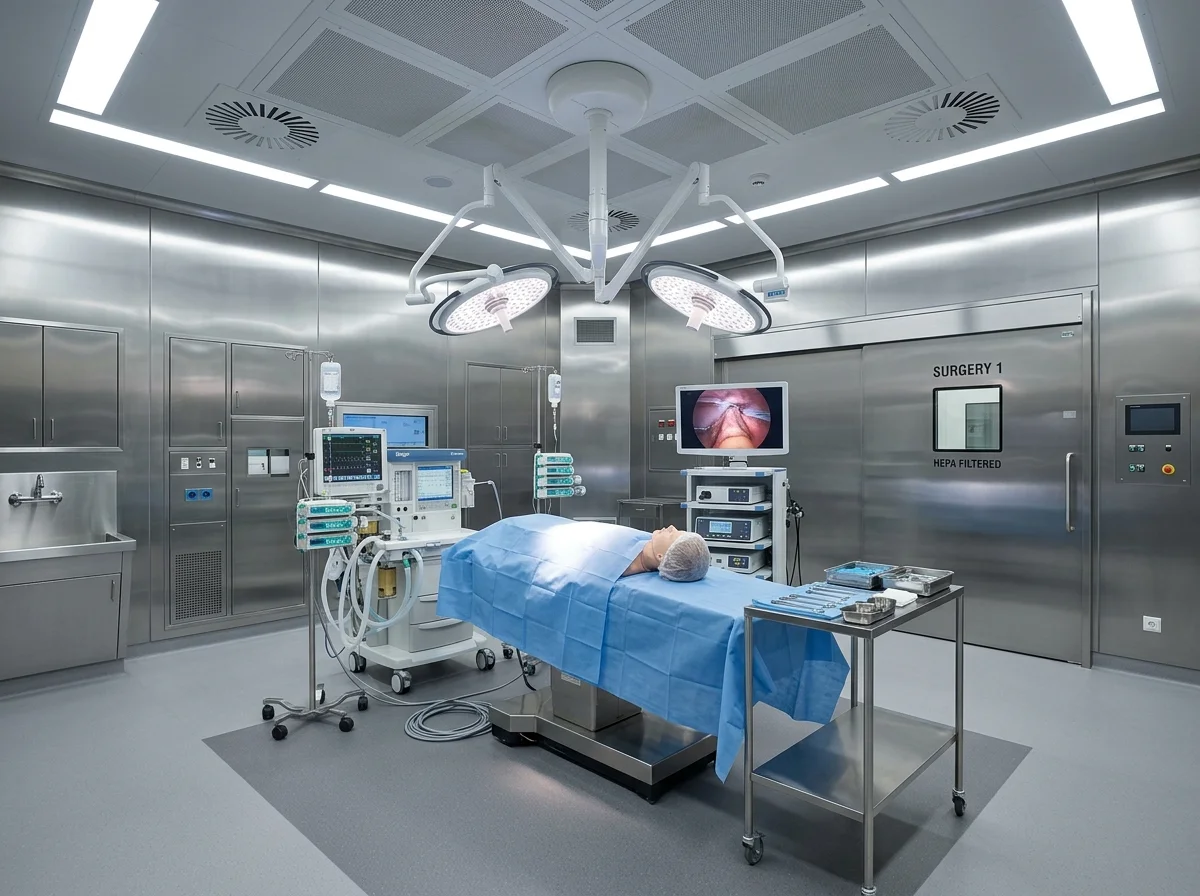

Modular Operation Theatre Overview

We are at the forefront of the design, installation, and maintenance of Modular Operation Theatres (MOT). Cygnus Tech Lab brings to you bespoke Modular Operation Theatres that are designed and built keeping in mind your clinical needs to provide the most efficient, cost-effective solution along with maximum functional utility.

Our MOT suites are state-of-the-art modular operation theatres designed in compliance with all relevant National and International Standards (including NABH, ISO 14644-1 Class 100 / ISO 5, DIN 1946-4, and HTM 03-01). Each suite assimilates all necessary modules customized to suit specific clinical needs, with options for integrating equipment such as surgical LED lights, OR tables, digital signal transmission, climate parameters, and medical gas alarm systems.

Modular OT Equipment & Components

LED Peripheral Light

Conforming to IEC 60601-1 STANDARDS

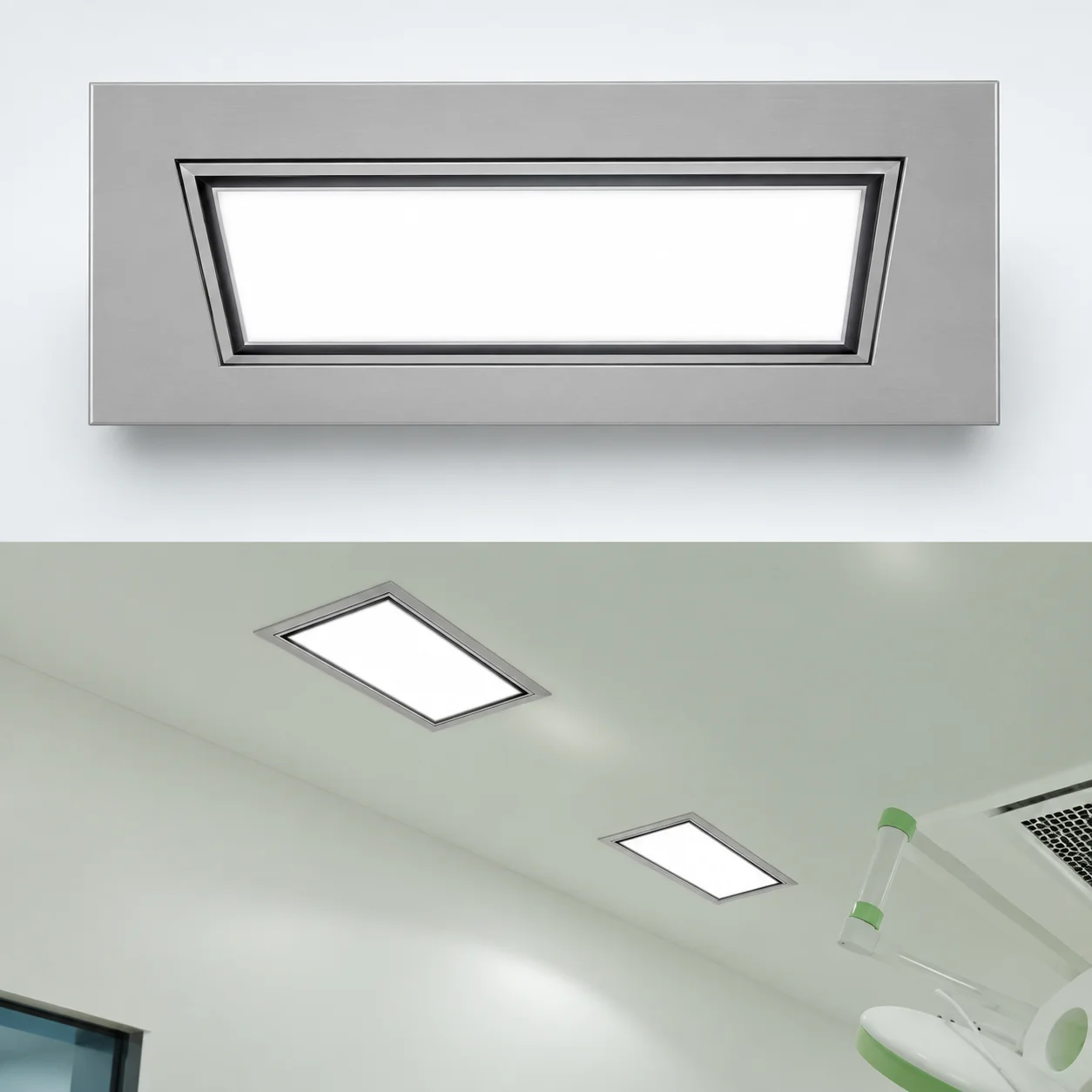

Work with optimum visual conditions in your OR. We provide excellent engineering and ceiling light solutions to ensure that your OT is optimally illuminated and is easy to maintain.

Intensity Control: Controlled via Control Panel
Compliance: IP54 Compliant
Dimming Control: With Dimmable Ballasts (Optional)
Light Diffuser: Made from Opaque Acrylic Material

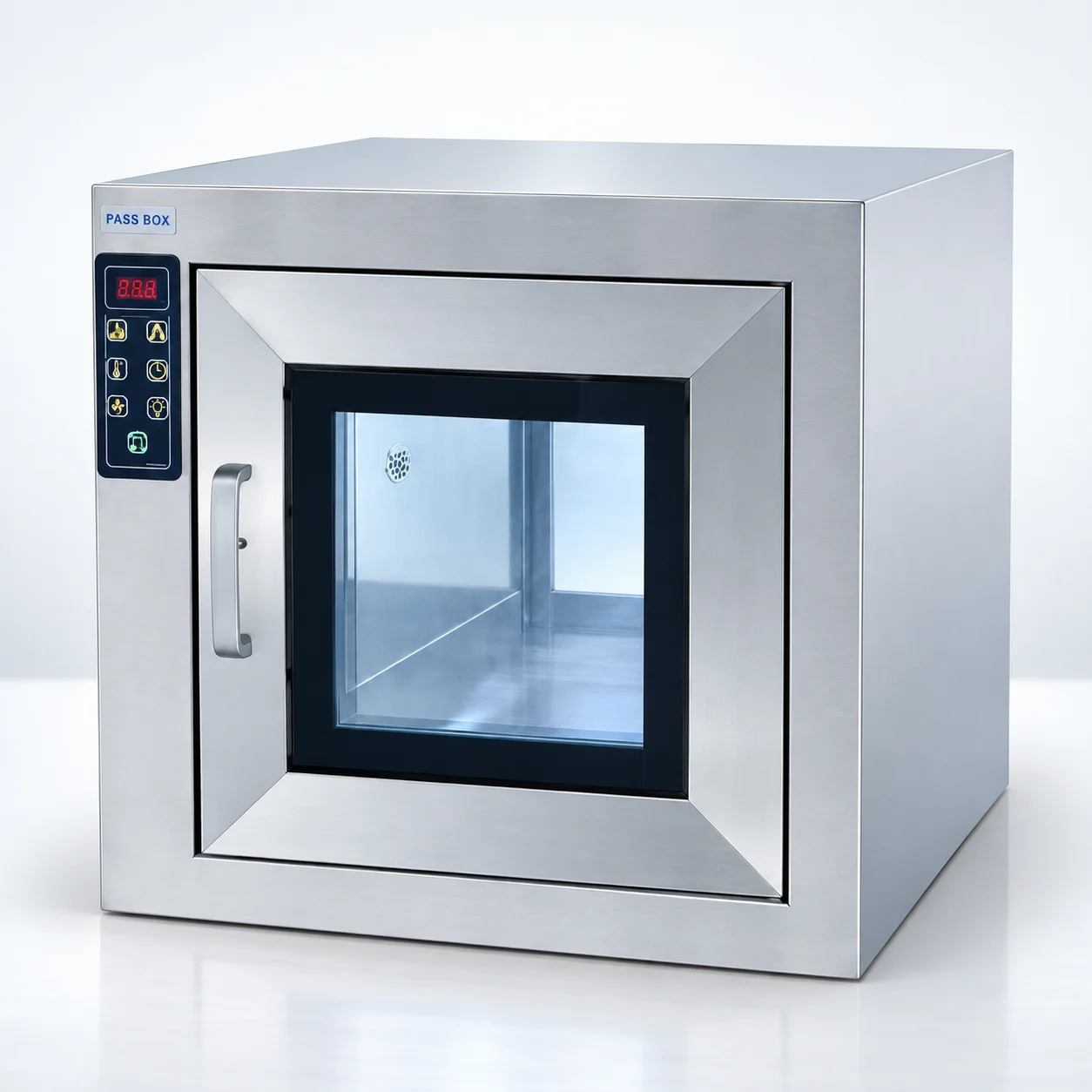

Hatch Box / Pass Box

Hygienic Transfer Hatches | Anti-Contamination

Hygienic transfer hatches that minimize the risk of contamination. Hatches are vital in an OT to provide a safe and easy way to transfer waste material from the theatre to the adjacent dirty lines area. Each hatch is equipped with two doors that operate electronically. The hatches are designed in such a way that only one should be open at one time. UV lights are installed in the chamber so that it is kept ON while both doors are closed, turning off automatically when either door is opened. Indicators on both sides of the OT maintain door open/close status from both ends.

Doors: Two Electronically Operated Interlocked Doors
UV Chamber: Automatic UV Sterilization with Safety Shut-Off
Status Display: Open/Close Indicators on Both OT Sides
Material: Heavy-Duty Stainless Steel Construction

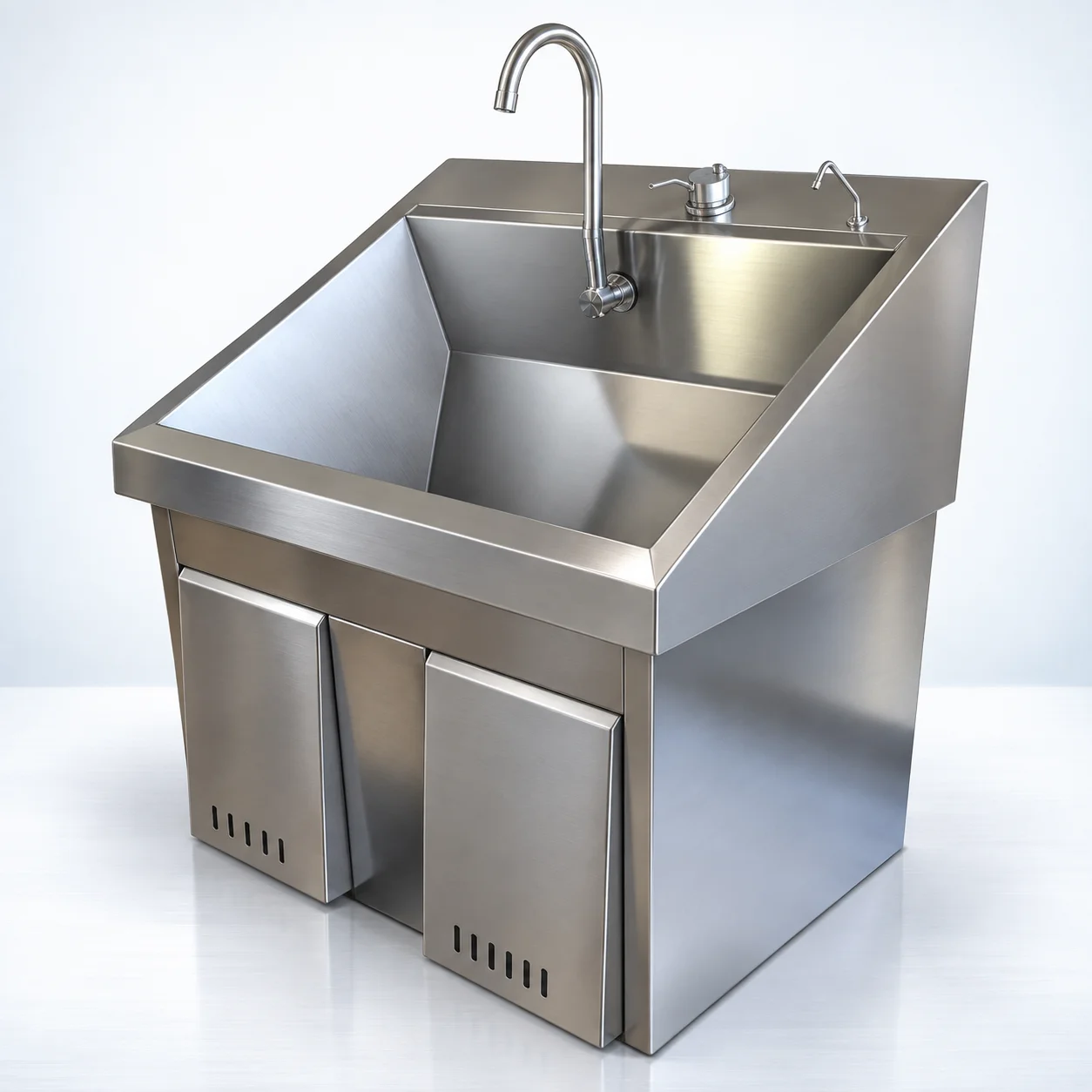

Scrub Station

Manual & Sensor Controlled Scrub Sink

Easy to maintain, durable and custom designed as per OT layout. The scrub sink is available in manual mode with elbow, knee, or foot operation in single, double, or triple faucets. We provide splash-proof sensor-controlled scrub sinks made of stainless steel with superior quality adjustable faucets. The sensor detects the slightest movements and is pre-programmed with 1, 3, 6 and 10 minutes of scrub settings (customizable). Wall-mounted a few inches above the ground to keep floors clean, with a thermostatic valve provided to mix hot and cold water for surgeon comfort.

Operation: Touchless Sensor or Elbow / Knee / Foot Modes
Configurations: Single, Double, or Triple Faucets
Scrub Timers: Pre-programmed 1, 3, 6 & 10 Minutes
Thermostat Valve: Hot & Cold Water Mixing for Comfort

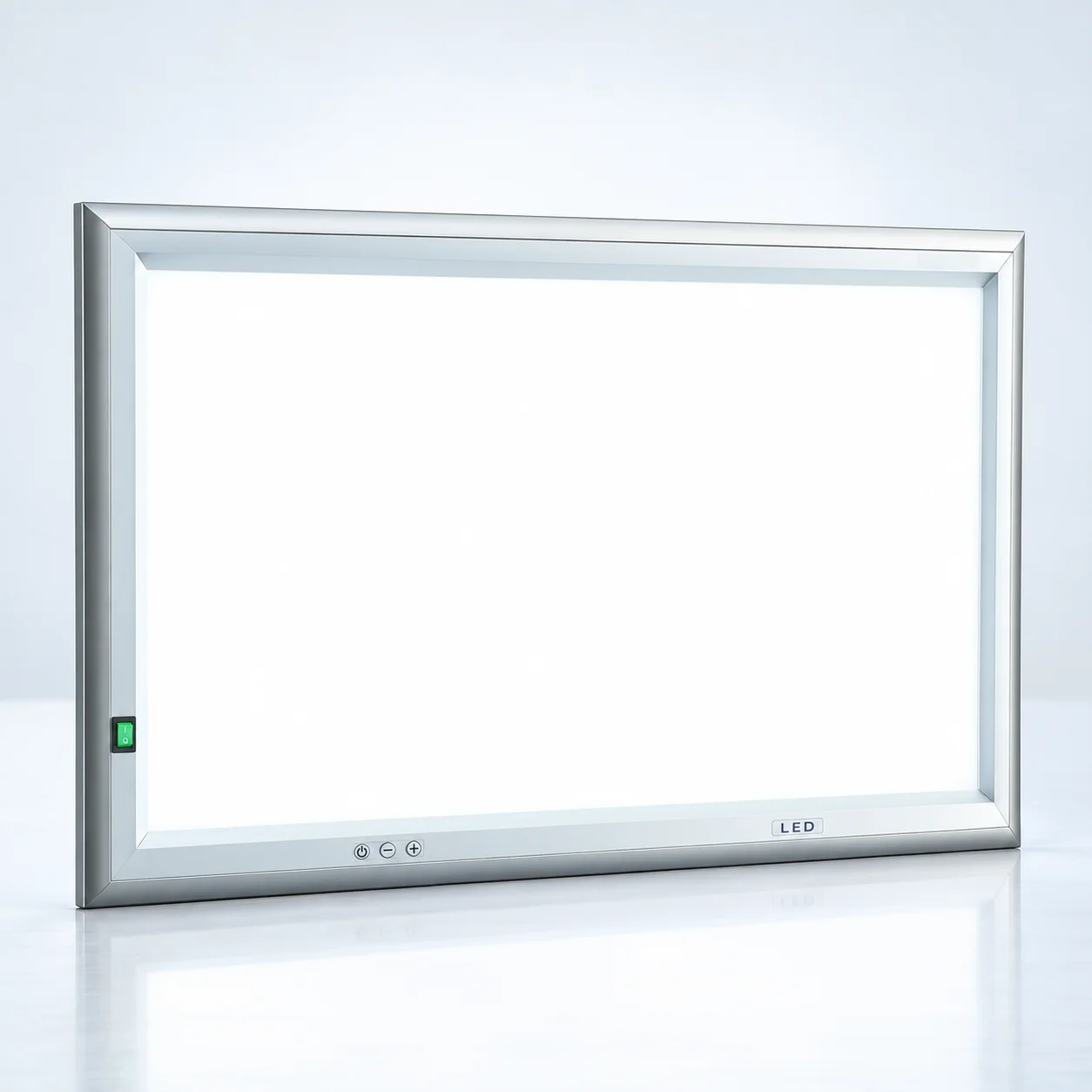

X-Ray View Box

Conforming to IEC 60601-1 STANDARDS

We provide X-Ray view boxes that facilitate viewing of the X-Ray with ease. Special ballast offers flicker-free illumination with a dimmer for optimum viewing. Available with features such as touch on/off button with multistage lighting intensity.

Illumination: Special Ballast Flicker-Free Illumination
Dimming: Integrated Dimmer for Optimum Viewing
Touch Controls: Touch ON/OFF Button
Intensity: Multistage Lighting Intensity Settings

LAMINAR PLENUM

For Steady, Turbulence-Free & Clean Air

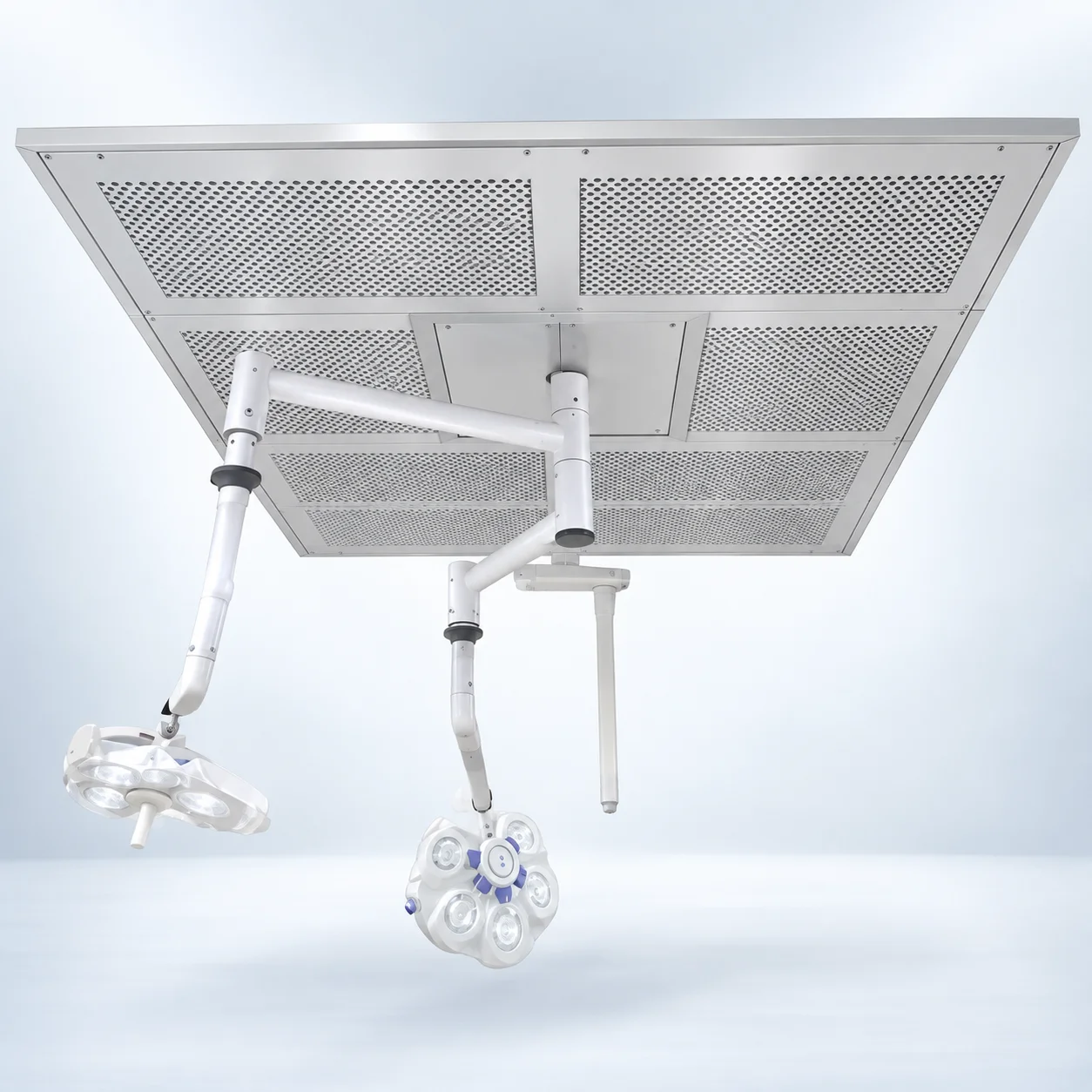

Laminar air flow ensures that the flow of air in the OR is continuous, steady, and unidirectional, moving with low uniform velocity in parallel planes. The air flows steadily without letting contaminated particles be picked up from one spot and deposited in another; instead, it ensures that they are carried away from the working area to the exhaust point. Easily accessible test ports can be provided (Optional).

Plenum Size: 6' x 8' or 8' x 8' (Other Sizes Available)
Air Purity: Mini-Pleat HEPA Filters for Class 100 Air Quality
Air Velocity: 0.45 m/sec (90–120 FPM)
Air Changes: 30 Times Per Hour with 20% Fresh Air
Positive Pressure: 2 to 15 Pascal (As per ISO 14644)
Temperature & Humidity: 18°C–24°C | 40%–60% RH

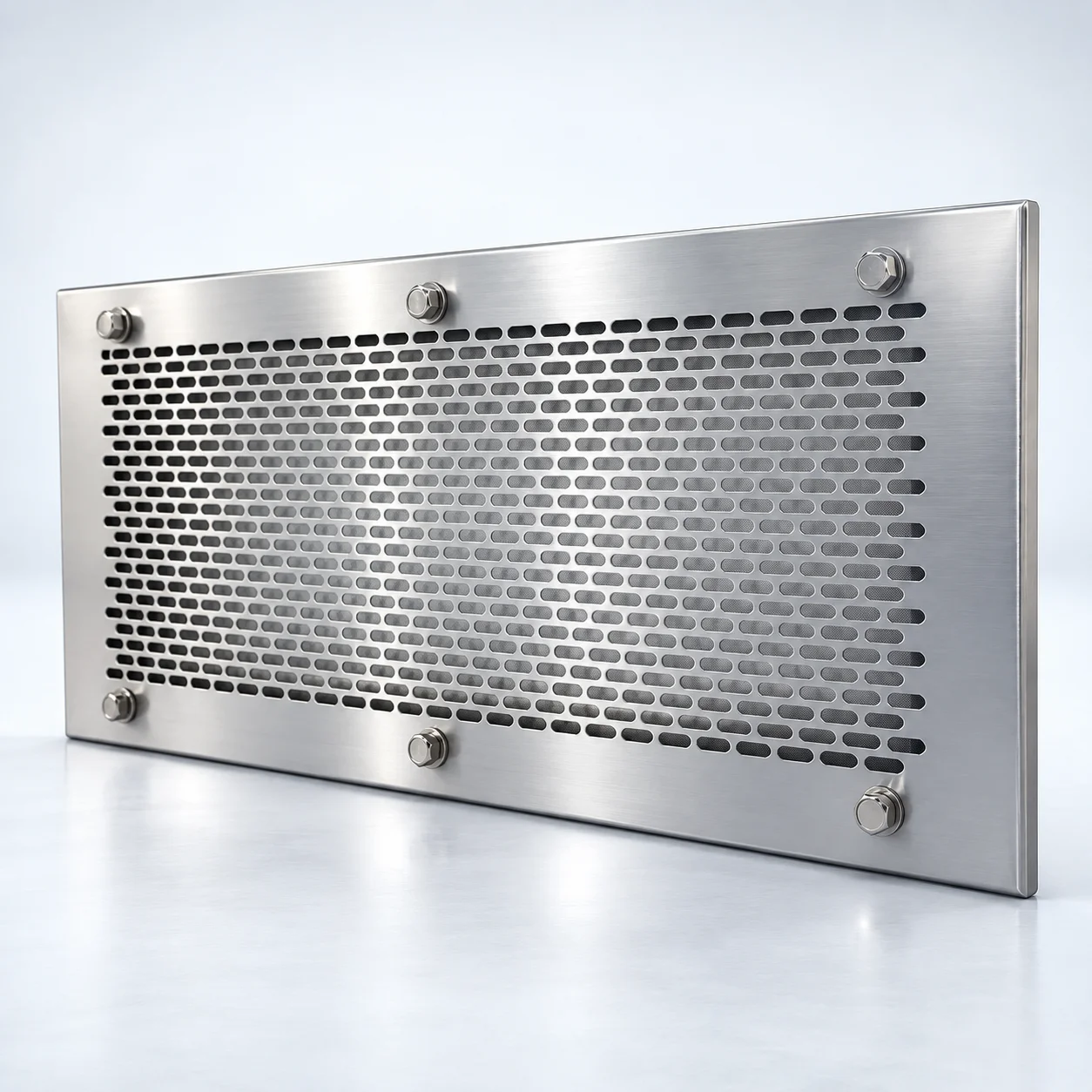

RETURN RISER WITH GRILL

SS304 / Aluminum Powder Coated Grills

Exhaust air grill of SS304 or aluminum powder-coated mounted on exhaust air ducts. The grill is openable to facilitate cleaning of exhaust air cabinet ducts. Exhaust grid can be provided at both locations – close to floor and close to ceiling. Fluff strainer and damper can be provided as optional. Return air ducts from all corners of modular ceiling with built-in flush lights.

Material: SS304 or Powder Coated Aluminum
Duct Maintenance: Openable to Facilitate Cleaning
Placement: Dual Grid – Close to Floor & Close to Ceiling
Optional Accessories: Fluff Strainer & Volume Damper

AHU (Air Handling Unit)

Compatible AHU & Outdoor Unit for each OR

The Air Handling Unit (AHU) is an integral part of an OR used to re-condition and circulate air as part of the heating, ventilating and air-conditioning system. The basic function of the AHU is to take in outside air, re-condition it and supply it as fresh air to the building. All exhaust air is removed, which creates an acceptable indoor air quality. Depending on the required temperature of the re-conditioned air, the fresh air is either heated via recovery unit or heating coil, or cooled by a cooling coil.

Pre-Filtration: 2-Stage Pre-Filtration (10 Microns & Fine)
Air Changes: 30 Air Changes Per Hour with 20% Fresh Air
Temperature: 18°C to 24°C Precise Control
Humidity: 40% – 60% Regulated RH

Sliding Door

Hermetically Sealing Door (Automatic & Manual)

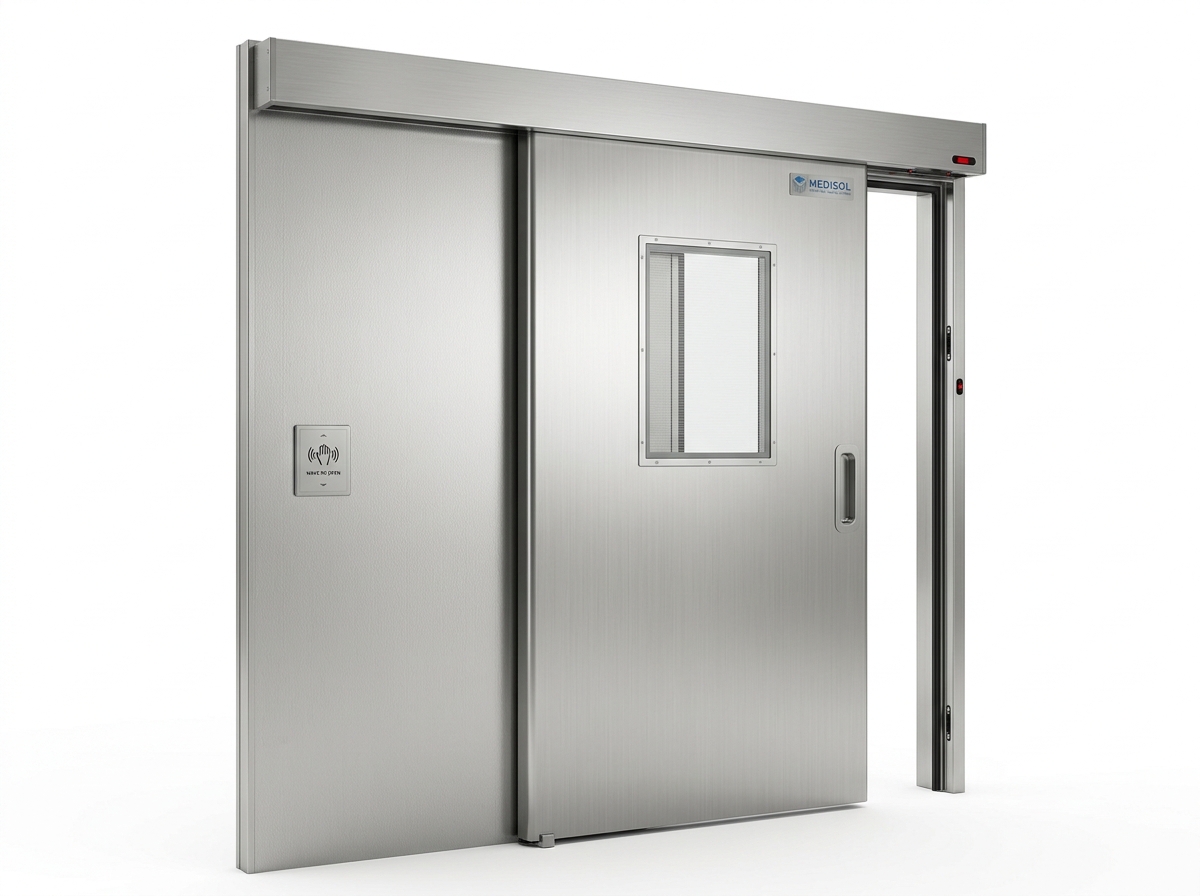

The importance of clean air in the OR cannot be undermined. Hermetically sliding doors are specially designed to control air pressure and prevent infections and bacteria from entering the OR. The sliding doors also provide easier accessibility and better use of available space as compared to conventional door sets. Apart from standard sizes, we offer these doors in customization as per your specific requirements.

Variants: Automatic, Manual, & Swing Down Doors
Stainless Steel: Customization in Stainless Steel (SS304)
Radiation Protection: Anti-Radiation Lead-Lined Doors (Cathlab/Radiology)
Pressure Control: Hermetic Sealing for Infection Barrier

Control Panel

Display & Control Panel (Conforming to IEC 60601-1)

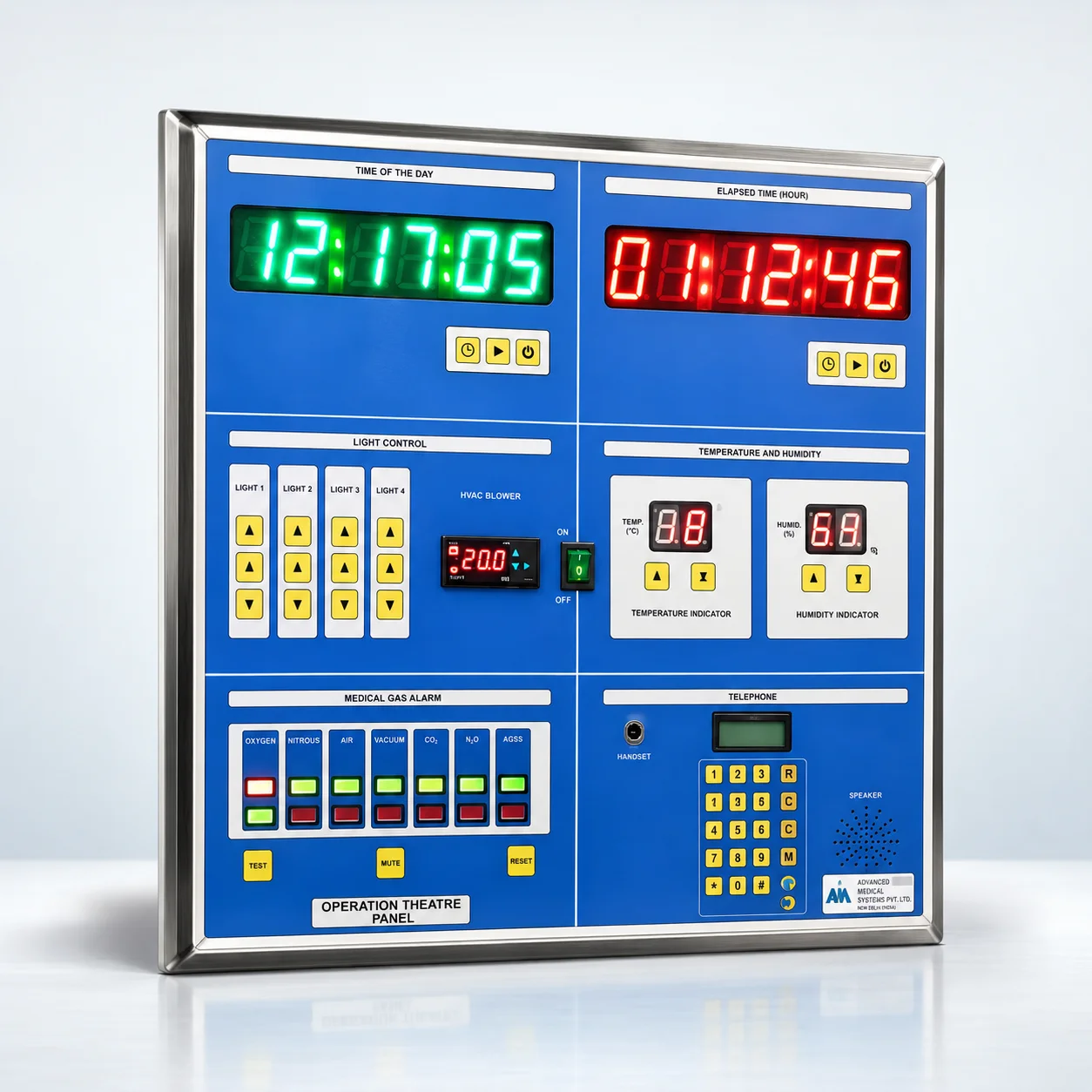

Concentrate on the patient needs; for the rest we are there. All the controls of the modular operation theatre are provided on a membrane type or touchscreen microcontroller-based electric control panel mounted in the room wall. Our control panel meets electrical safety codes for high and low voltage systems. It is user-friendly, made with superior quality UV-resistant membrane with sterilization feature, displaying all parameters simultaneously.

Clocks: Time of Day, Elapsed Time & Anesthesia Countdown Timer
Climate: Temperature & Humidity Display / Control
Lighting & Gas: Lighting/Dimming Control & Medical Gas Alarms
Sensors & Comms: HEPA Filter Indicator, OT Pressure, Hands-Free Telephone
AHU Control: AHU ON/OFF & ODU Temp Preset from Inside OT
Optional: Bluetooth Music System & DATA USB Port

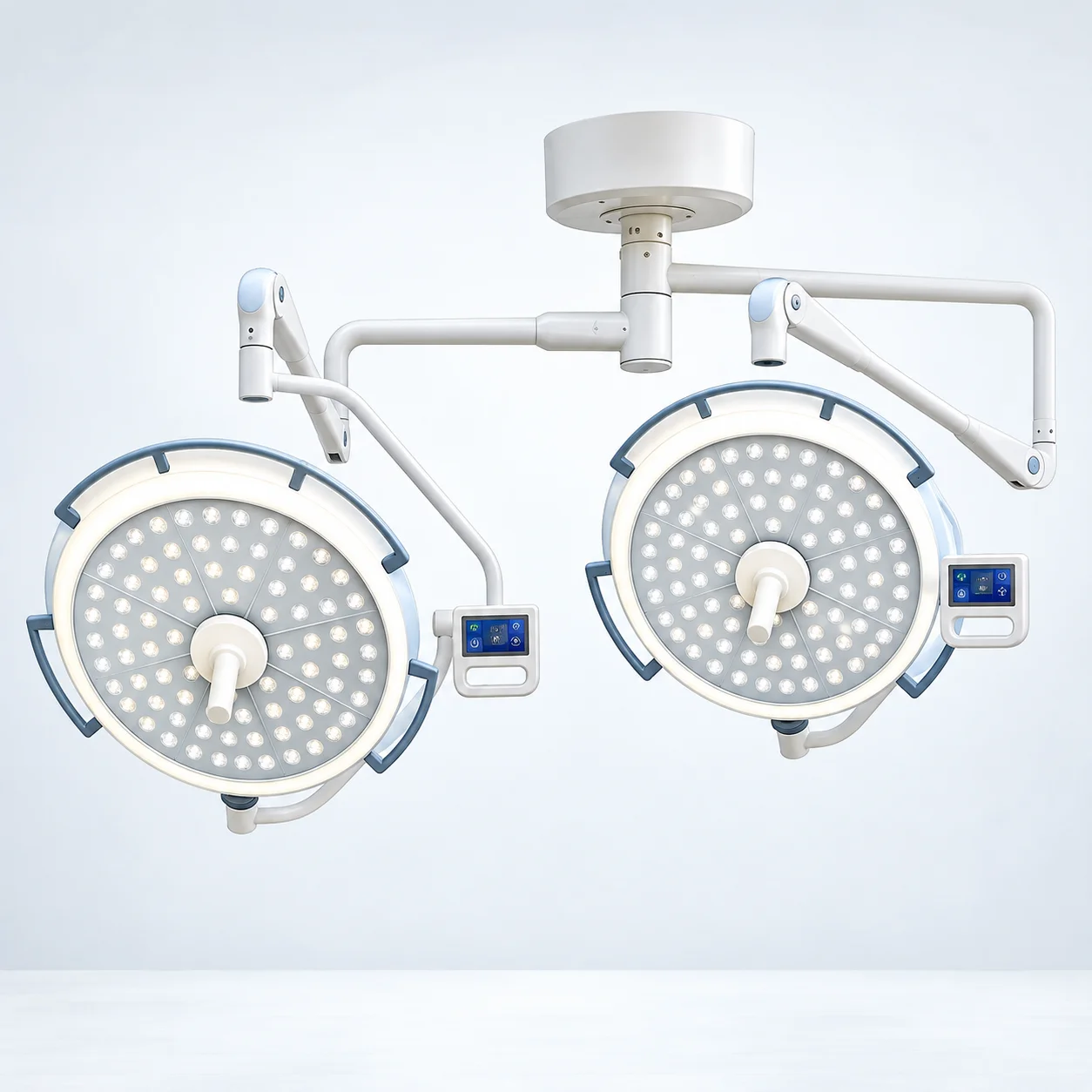

Surgical Light

Surgical Light and Table (International Standards)

With state-of-the-art technology engineered from international standards, we are involved in manufacturing surgical lights and OT tables for modular operation rooms. Delivers high-definition shadowless illumination with optimal depth of illumination and aerodynamic laminar airflow contours.

Technology: State-of-the-Art LED Surgical Illumination
Standard: Engineered to International Surgical Standards
Aerodynamics: Streamlined Design Compatible with Laminar Airflow
OT Table Integration: Available with Advanced Operating Table Solutions

Writing Board

Magnetic Writing Board

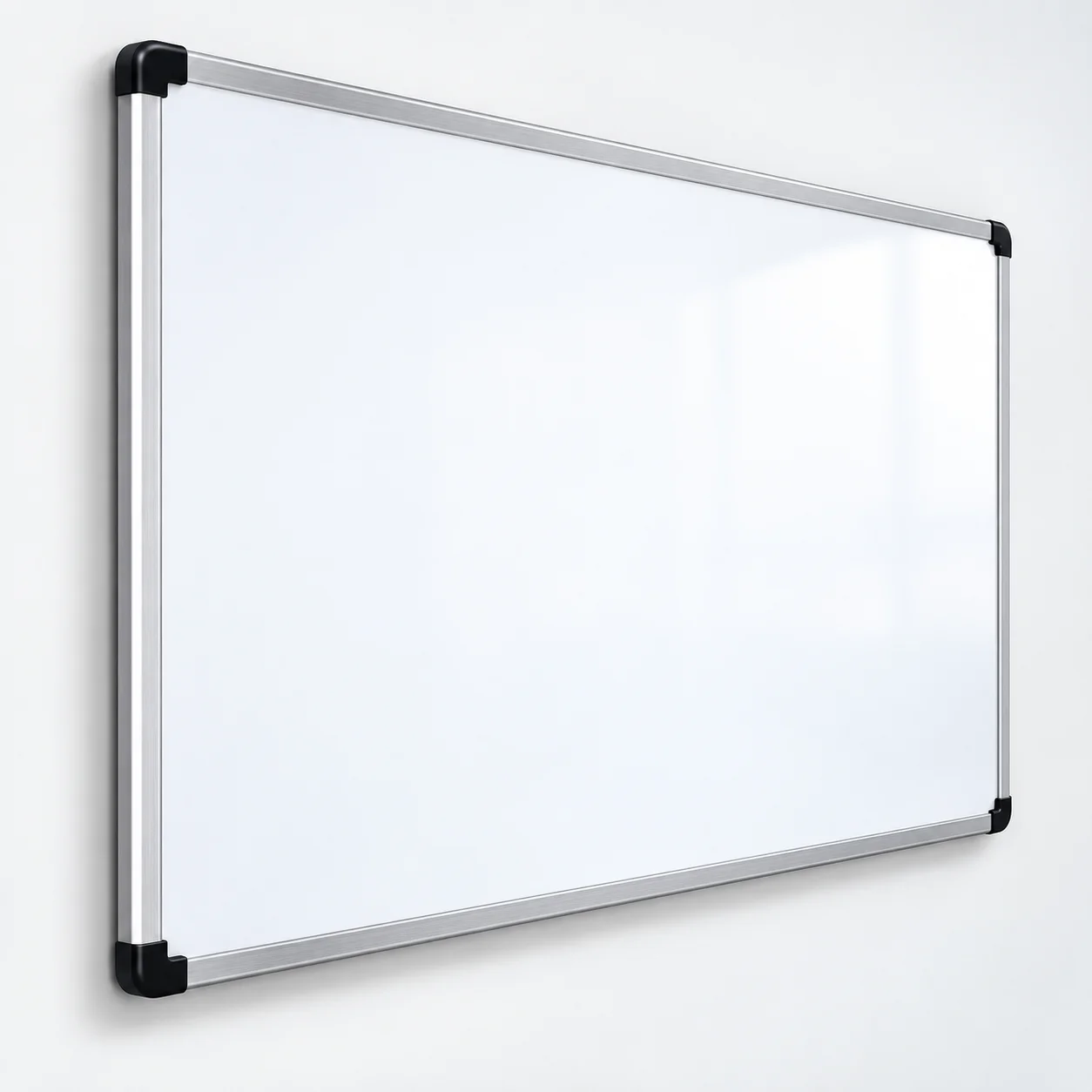

High finish writing board that comes in handy in OT. Made of ceramic having magnetic properties and is fixed flush to the wall of the operating room.

Material: Ceramic Having Magnetic Properties
Installation: Fixed Flush to the Operating Room Wall
Finish: High-Finish, Non-Porous & Scratch Resistant
Sanitization: Smooth Surface for Effortless Disinfection

Storage

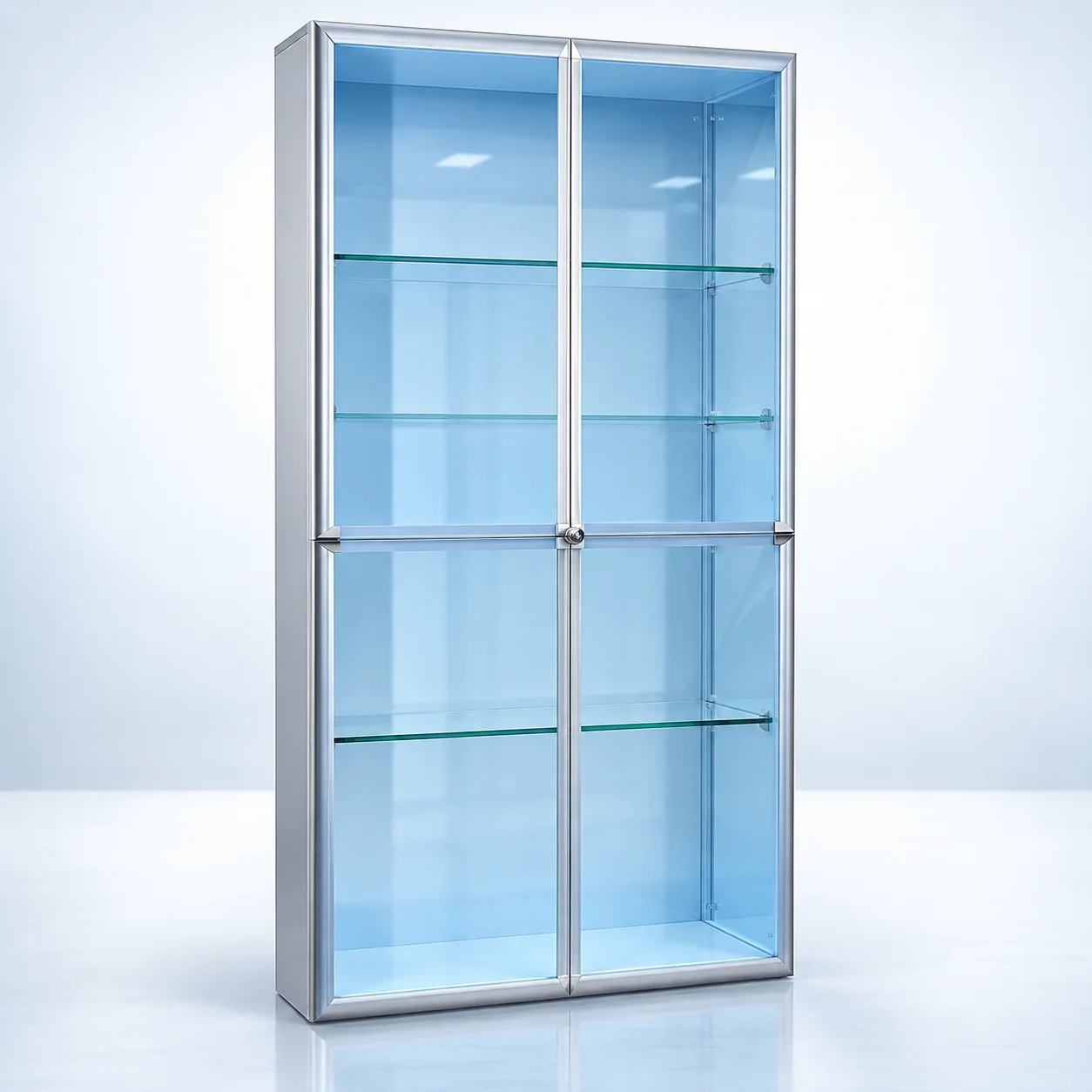

Storage Unit | Wall-Integrated Storage

A convenient storage option with wall-integrated storage unit for all storage needs in the OT. The units come with antibacterial paint coating and clear glass panels with magnetic catchers. The wall-integrated storage unit can be affixed with cladding inside the unit that is the same as the OR wall panels.

Integration: Wall-Integrated Flush Design
Coating: Antibacterial Paint Coating
Glass Doors: Clear Glass Panels with Magnetic Catcher
Internal Cladding: Matches Operating Room Wall Panels

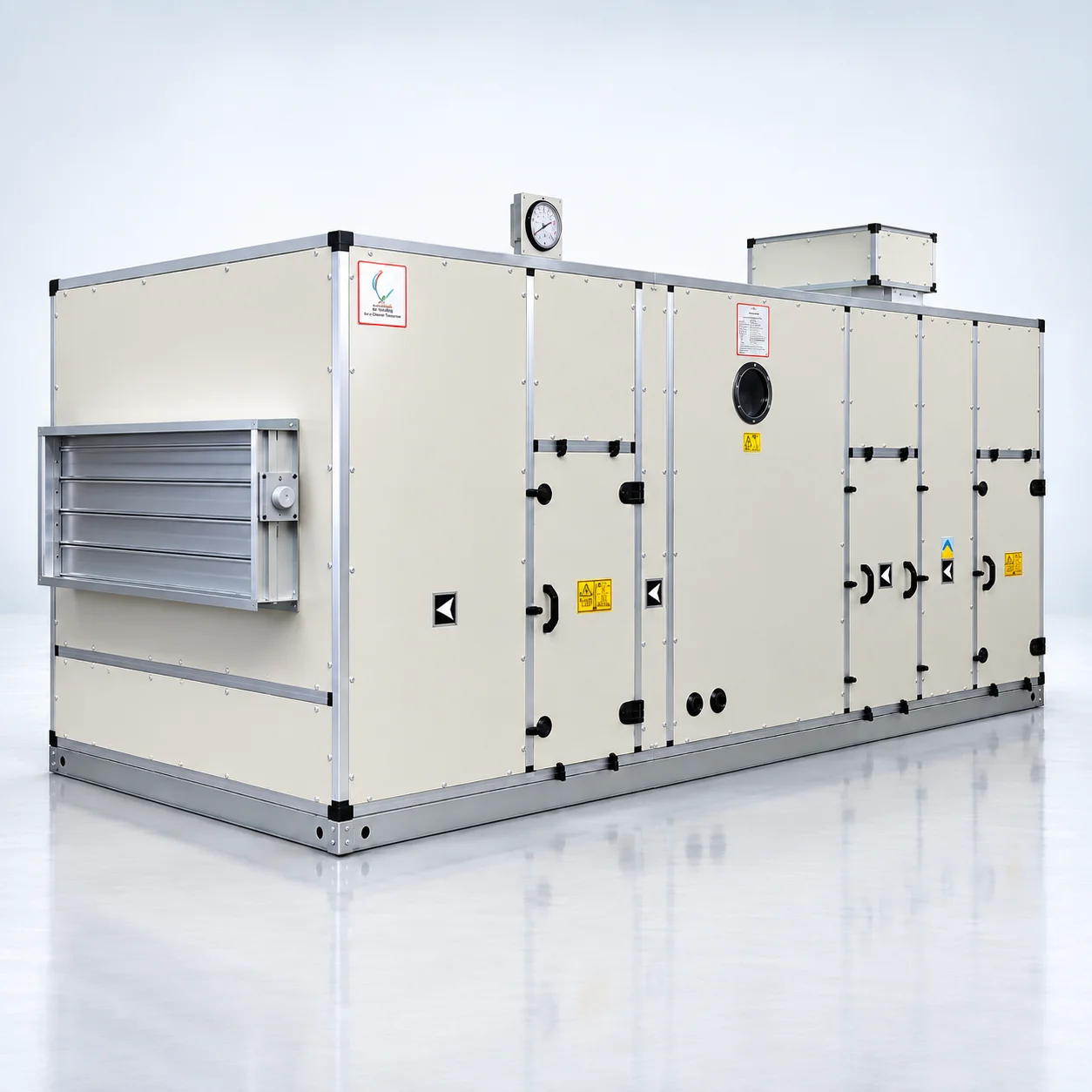

AHU DB

AHU Distribution Board & Power Control

Dedicated electrical distribution board (AHU DB) designed specifically for the Air Handling Unit and outdoor unit integration. It regulates motor power supply, phase monitoring, starters, and safety interlocks with the Surgeon Control Panel for direct inside-OT control.

System Integration: Complete AHU & Outdoor Unit Control
Panel Interlock: AHU ON/OFF Control from Inside the OT
Safety Protection: Overload, Phase & Short-Circuit Protection
Compliance: High & Low Voltage Safety Codes

PRD (Pressure Relief Damper)

Robust, Maintenance-Free and Functional

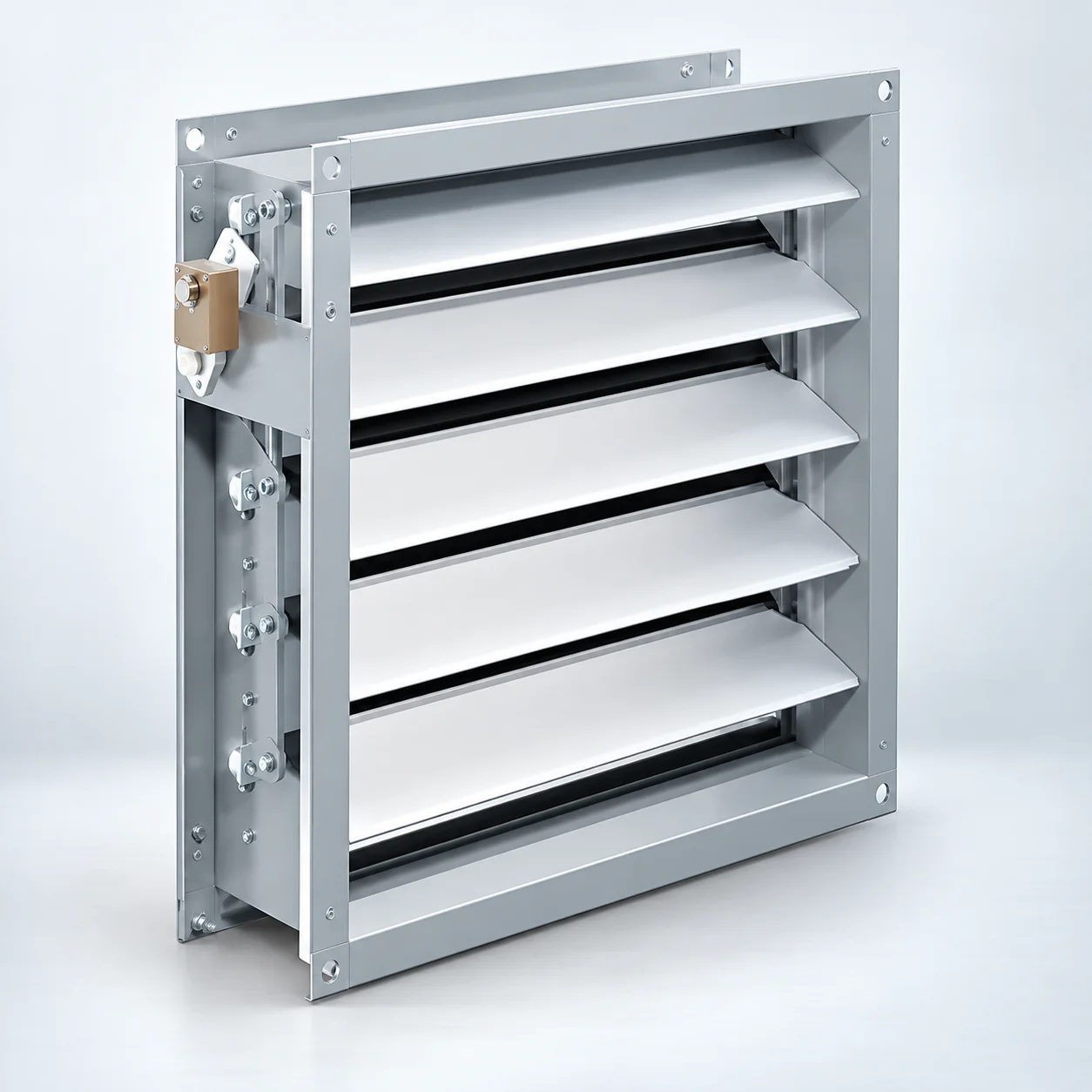

Pressure relief dampers (PRD) are placed to prevent excess pressure in the OT. The AHU pumps in a lot of air every minute and the OT is hermetically sealed. PRDs are placed strategically in the OT to equalize the air pressure in the OT by opening just for micro-seconds.

Working Range: 5 to 35 Pa Pressure Differential
Construction: Aluminum Blades & Galvanized Steel Casing
Operation: Blades Open on Excess Pressure & Close on Drop
Magnetic Locking: Built with Permanent Magnet Locking
Temperature: Operating Temperature 0 to 80 °C
Sizes: Available in Standard and Intermediate Sizes

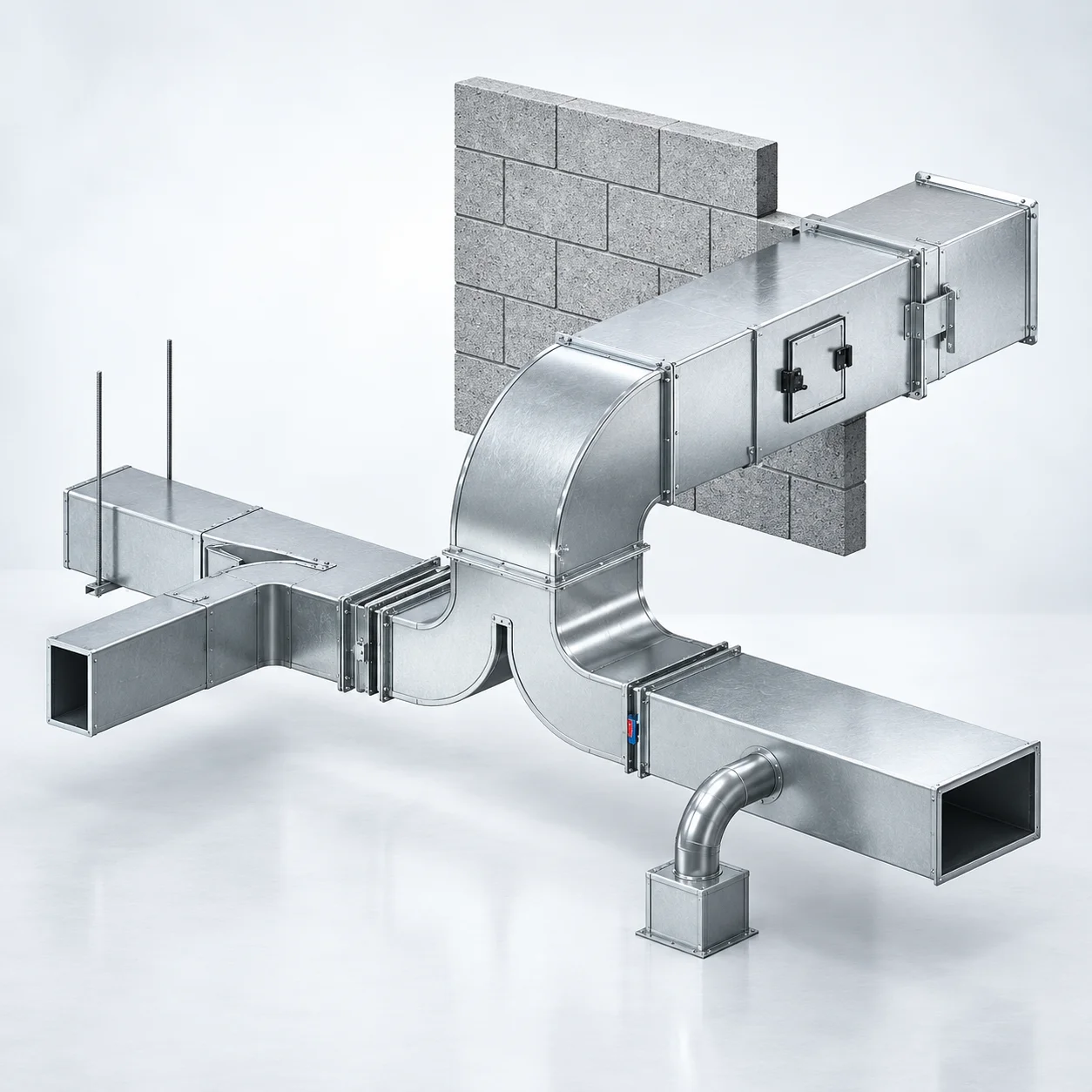

Ducting & Insulation

Galvanized Steel Ducting & Thermal Insulation

Air distribution ducting network engineered for optimal airflow from the AHU to the laminar airflow ceiling plenum and return air risers. Fabricated from heavy-gauge galvanized steel sheet with airtight jointing and insulated with high-efficiency thermal insulation to prevent heat loss, condensation, and noise transmission in the OT suite.

Fabrication: Heavy-Gauge Galvanized Steel (GI) Ducting
Thermal Insulation: High-Density Anti-Condensation Insulation
Airtight Seals: Gasketed Flange Connections for Zero Leakage
Acoustic Control: Low Noise & Vibration Attenuation

Fire Damper With Actuator

Motorized Fire & Smoke Barrier Damper

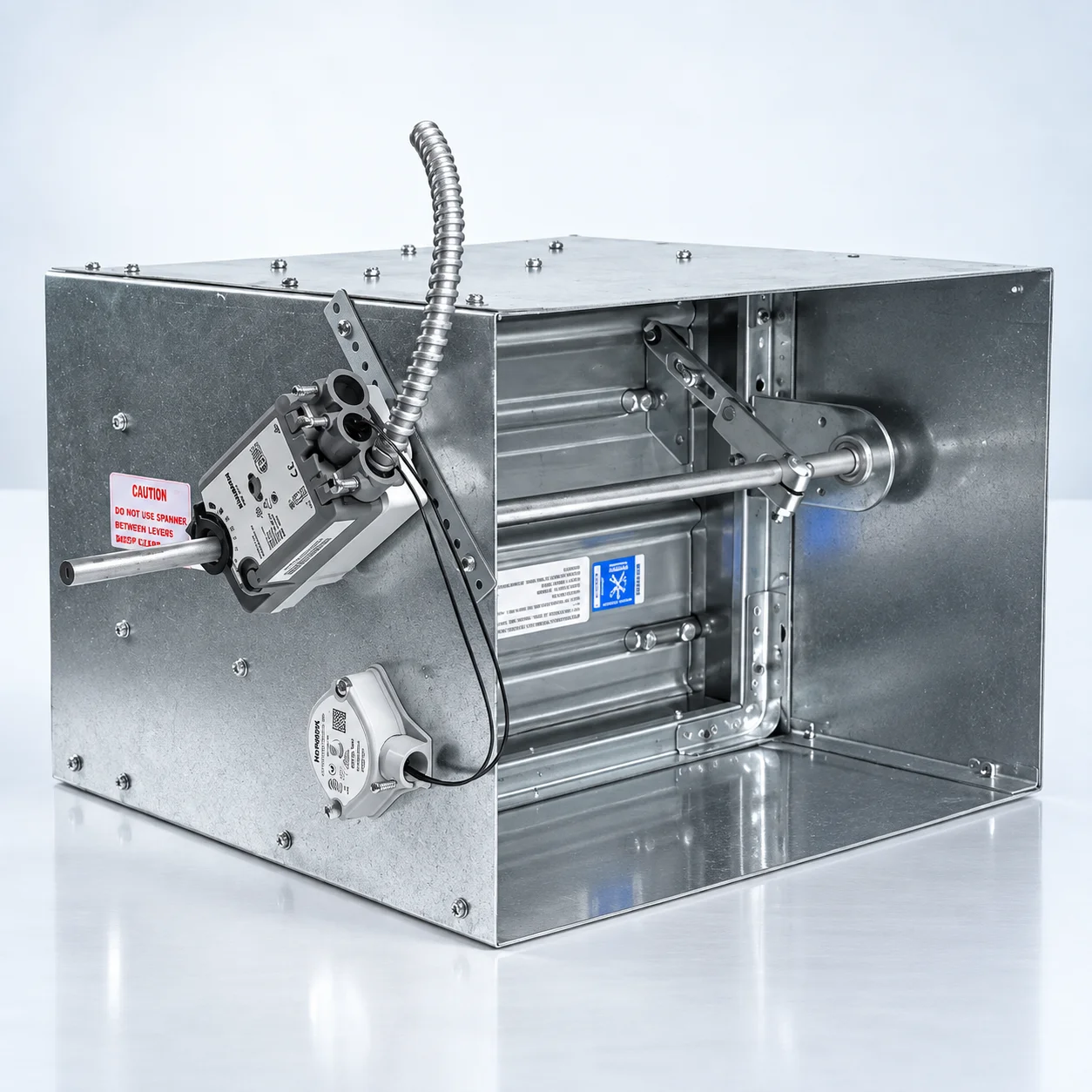

Motorized fire dampers equipped with electrical actuators positioned at duct crossings through firewall boundaries. Automatically seals off air supply and exhaust paths in case of smoke or thermal trigger, isolating the modular operating theatre from external hazards.

Operation: Motorized Spring-Return Electric Actuator
Automatic Trigger: Thermal and Smoke Sensor Interlock
Construction: Heavy-Duty Galvanized Steel Barrier
Fire Safety: Interlocked with AHU DB and Fire Alarm

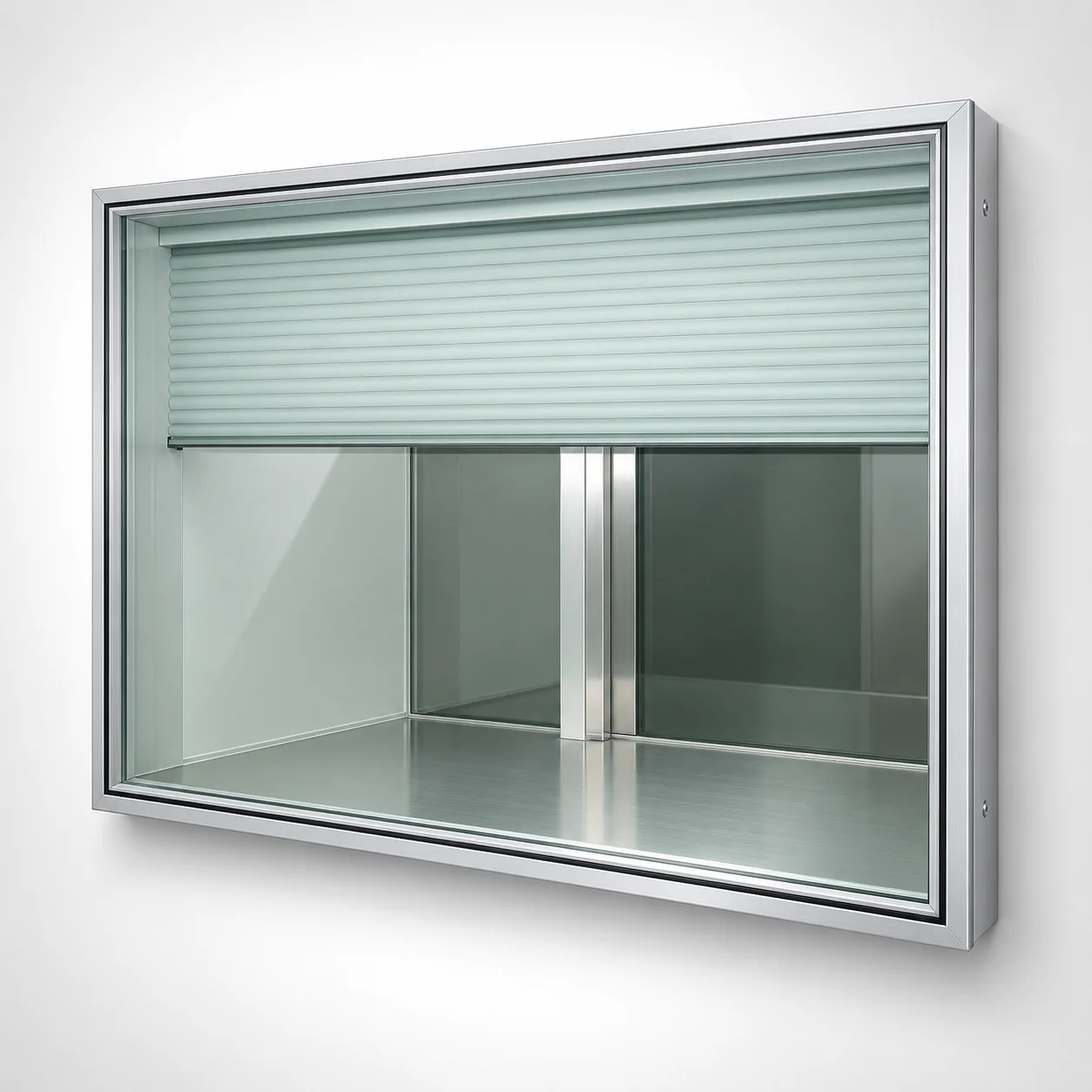

View Window

Double Glazed Vacuumized Window with Motorized Blind

Double glazed vacuumized window with motorized blind. Designed for flush integration within modular wall panels to offer pristine visibility into the operating room without compromising acoustic privacy or hermetic air pressure seals.

Glass Construction: Double Glazed Vacuumized Safety Glass
Motorized Blind: Integrated Motorized Blind for Privacy
Flush Mounting: Perfectly Coplanar on Both Wall Sides
Radiation Option: Anti-Radiation Lead Glass Available

Pendant

Surgical & Anesthesia Pendants (Single & Multi-Arm)

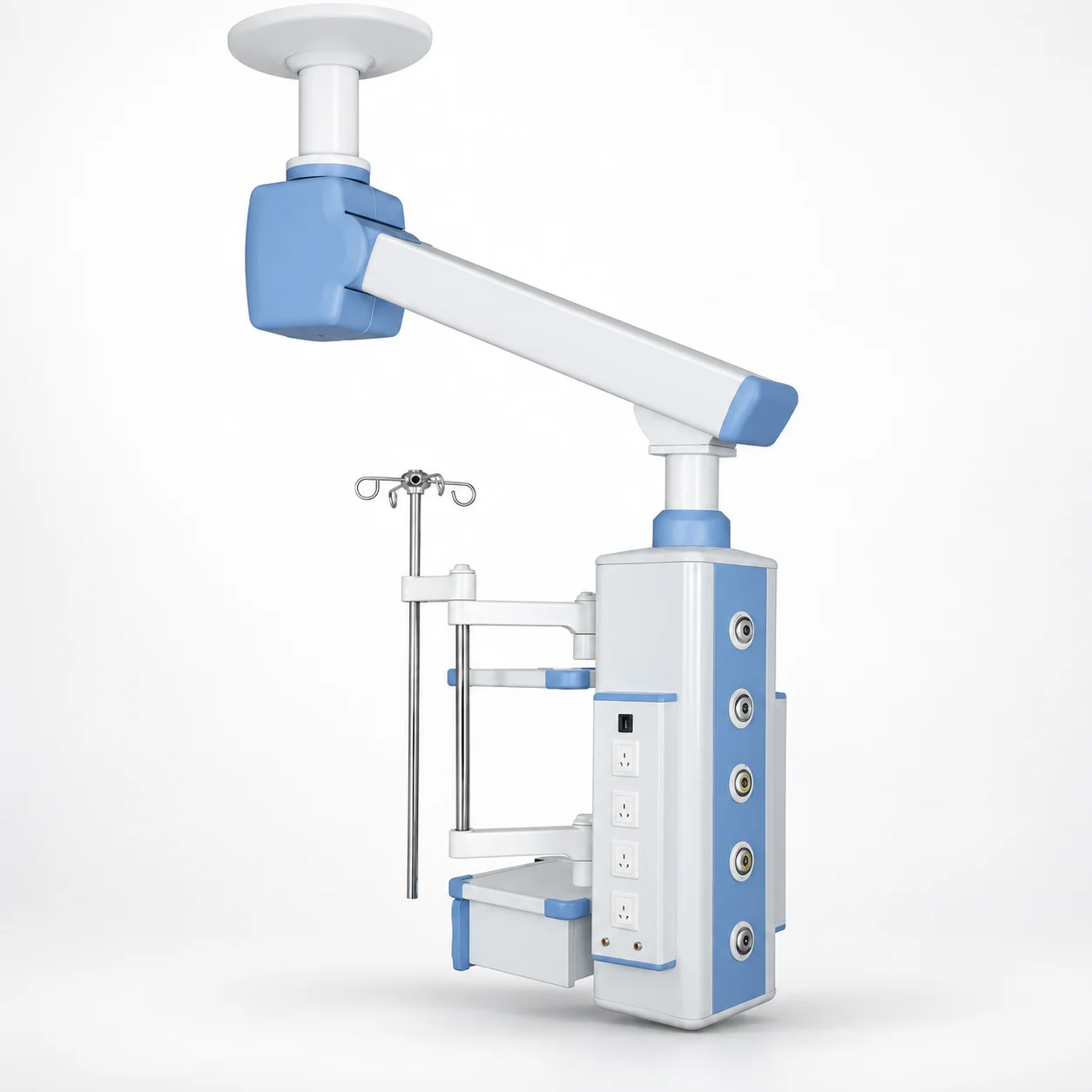

The surgical pendant is available in a variety of configurations to meet all kinds of surgical requirements of the medical staff during a surgery or procedure. Pendants are available in single or multi-arm variants. Efficiently manage your space and devices keeping the floor space free.

Space Management: Manages Medical Gases, Electrical, Video, Audio & Comms
Easy Maneuvering: Rotates with Ease, High-Quality Precision Ball Bearings
Custom Outlets & Shelving: O₂, N₂O, Air & Vacuum; Humidifier, IV Holder, Monitor Mounting
Ease of Use: 340° Arm Rotation with Non-Drifting Lock, SS Storage Handles & Aluminum Grips
